TEST REPORT
Unit Serial Number: Denon AVR-3805
TEST RESULTS

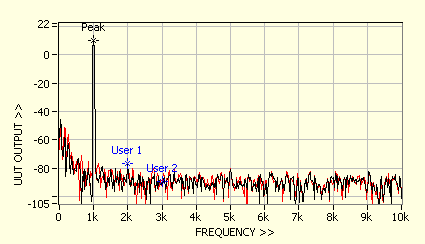

Check continuity and earth switch position.. PASS
Output Level achieved (re. 1000Hz into 8.0ohm) =
3.10V (Peak = 9.82dBV or 3097.7mVrms) (Front Channel)
3.12V (Peak = 9.88dBV or 3118.3mVrms) (Right Channel)
Maximum gain PASS
Gain achieved (re. 1000Hz into 8.0ohm) =
35.84dB (Front Channel)
35.90dB (Surround Channel)

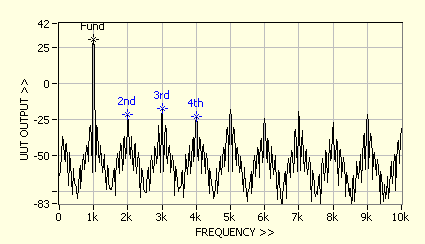

2 Channel Power Output into 8ohm (AV) PASS
Output Level achieved into 8.0ohm re. 1000Hz =
164.4W @ 0.5% (Front Channel)

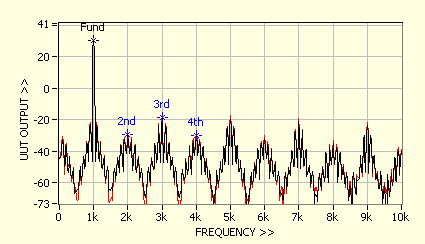

5 Channel Power Output into 8ohm (AV) PASS
Output Level achieved into 8.0ohm re. 1000Hz =
128.7W @ 0.4% (Front Channel)
130.6W @ 0.5% (Surround Channel)

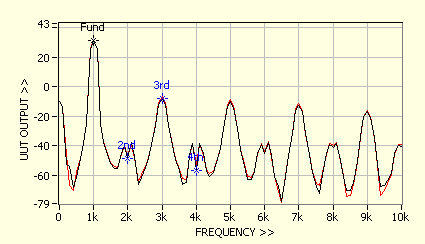

Dynamic Power Output into 8ohm PASS
Output Level achieved into 8.0ohm re. 1000Hz =
185.7W @ 1.1% (Front Channel)
188.2W @ 1.2% (Surround Channel)

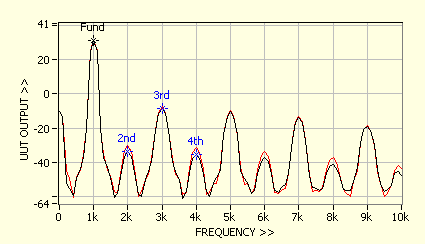

Dynamic Power Output into 4ohm (AV) PASS
Output Level achieved into 4.0ohm re. 1000Hz =
307.5W @ 1.1% (Front Channel)
314.5W @ 1.2% (Surround Channel)

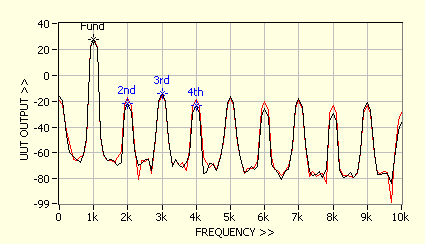

Dynamic Power Output into 2ohm (AV) PASS
Output Level achieved into 2.0ohm re. 1000Hz =
299.9W @ 0.9% (Front Channel)
311.6W @ 1.0% (Surround Channel)

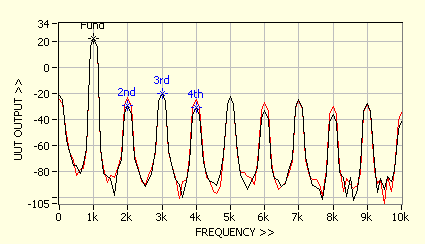

Dynamic Power Output into 1ohm (AV) PASS
Output Level achieved into 1.0ohm re. 1000Hz =
160.3W @ 0.8% (Front Channel)
169.6W @ 1.0% (Surround Channel)

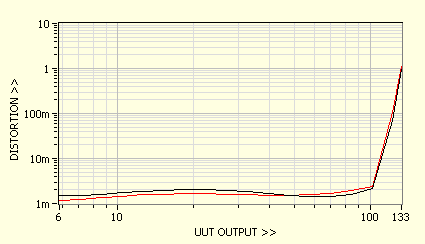

Power to rated Output vs Distortion PASS
Continuous Output Profile into 8.0ohm re. 1000Hz =
| 5.9W @ 0.002% | 7.1W @ 0.002% | 8.6W @ 0.002% | 10.4W @ 0.002% |
| 12.6W @ 0.002% | 15.2W @ 0.002% | 18.4W @ 0.002% | 22.2W @ 0.002% |
| 26.9W @ 0.002% | 32.6W @ 0.002% | 39.4W @ 0.002% | 47.7W @ 0.002% |
| 57.7W @ 0.001% | 69.8W @ 0.001% | 84.4W @ 0.002% | 102.1W @ 0.002% |
| 123.3W @ 0.068% | 133.3W @ 0.971% |
(Front Channel)
| 5.9W @ 0.001% | 7.2W @ 0.001% | 8.7W @ 0.001% | 10.5W @ 0.001% |
| 12.8W @ 0.002% | 15.4W @ 0.002% | 18.7W @ 0.002% | 22.6W @ 0.002% |
| 27.3W @ 0.002% | 33.1W @ 0.002% | 40.0W @ 0.002% | 48.4W @ 0.002% |
| 58.6W @ 0.002% | 70.8W @ 0.002% | 85.7W @ 0.002% | 103.8W @ 0.011% |
| 125.3W @ 0.310% | 135.1W @ 1.121% |
(Surround Channel)

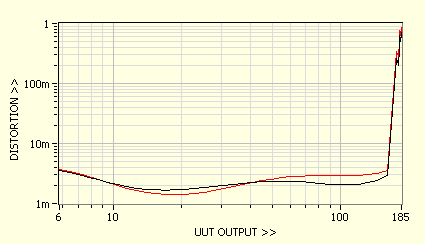

Dynamic Power Output vs Distortion PASS
Dynamic Output Profile into 8.0ohm re. 1000Hz =
| 5.8W @ 0.004% | 6.4W @ 0.003% | 7.0W @ 0.003% | 7.8W @ 0.003% |
| 8.6W @ 0.002% | 9.4W @ 0.002% | 10.4W @ 0.002% | 11.5W @ 0.002% |
| 12.6W @ 0.002% | 13.9W @ 0.002% | 15.4W @ 0.002% | 16.9W @ 0.002% |
| 18.7W @ 0.002% | 20.6W @ 0.002% | 22.7W @ 0.002% | 25.0W @ 0.002% |
| 27.6W @ 0.002% | 30.4W @ 0.002% | 33.6W @ 0.002% | 37.0W @ 0.002% |
| 40.8W @ 0.002% | 45.0W @ 0.002% | 49.6W @ 0.002% | 54.7W @ 0.002% |
| 60.3W @ 0.002% | 66.4W @ 0.002% | 73.2W @ 0.002% | 80.8W @ 0.002% |
| 89.0W @ 0.002% | 98.1W @ 0.002% | 108.2W @ 0.002% | 119.2W @ 0.002% |
| 131.4W @ 0.002% | 144.9W @ 0.002% | 159.7W @ 0.003% | 175.2W @ 0.262% |
| 177.0W @ 0.246% | 178.9W @ 0.203% | 180.0W @ 0.389% | 180.8W @ 0.630% |
| 181.4W @ 0.571% | 183.5W @ 0.509% | 184.6W @ 0.711% | 183.9W @ 0.586% |
(Front Channel)
| 5.9W @ 0.004% | 6.5W @ 0.003% | 7.1W @ 0.003% | 7.9W @ 0.003% |
| 8.7W @ 0.002% | 9.6W @ 0.002% | 10.6W @ 0.002% | 11.6W @ 0.002% |
| 12.8W @ 0.002% | 14.2W @ 0.002% | 15.6W @ 0.001% | 17.2W @ 0.001% |
| 19.0W @ 0.001% | 20.9W @ 0.001% | 23.1W @ 0.001% | 25.4W @ 0.002% |
| 28.0W @ 0.002% | 30.9W @ 0.002% | 34.1W @ 0.002% | 37.6W @ 0.002% |
| 41.4W @ 0.002% | 45.7W @ 0.002% | 50.3W @ 0.003% | 55.5W @ 0.003% |
| 61.2W @ 0.003% | 67.5W @ 0.003% | 74.4W @ 0.003% | 82.0W @ 0.003% |
| 90.4W @ 0.003% | 99.7W @ 0.003% | 109.9W @ 0.003% | 121.2W @ 0.003% |
| 133.6W @ 0.003% | 147.3W @ 0.003% | 162.3W @ 0.061% | 177.8W @ 0.299% |
| 179.7W @ 0.428% | 181.6W @ 0.679% | 182.6W @ 0.652% | 183.4W @ 0.632% |
| 183.9W @ 0.712% | 186.1W @ 0.692% | 187.1W @ 0.852% | 186.4W @ 0.967% |
(Surround Channel)
Cool down period... NONE
Programmed delay of 15000 msec completed.

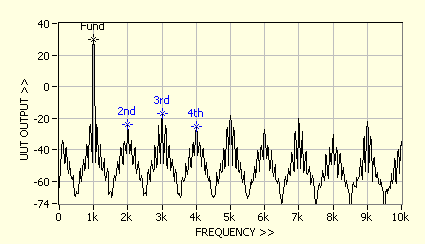

2 Channel Power Output into 4ohm (AV) PASS
Output Level achieved into 4.0ohm re. 1000Hz =
260.2W @ 0.5% (Front Channel)
Cool down period... NONE
Programmed delay of 15000 msec completed.

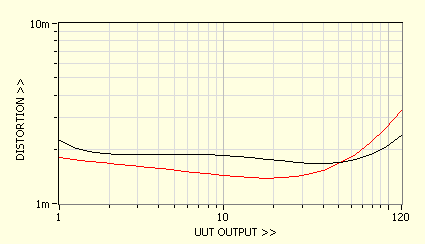

Distortion from 1W to rated Power into 8ohm PASS
THD achieved into 8.0ohm (2nd-4th harmonics) re. 1000Hz =
| 0.00208% @ 1.0W | 0.00218% @ 1.2W | 0.00214% @ 1.5W | 0.00203% @ 1.8W |
| 0.00190% @ 2.3W | 0.00180% @ 2.8W | 0.00173% @ 3.4W | 0.00170% @ 4.2W |
| 0.00171% @ 5.2W | 0.00175% @ 6.4W | 0.00181% @ 7.9W | 0.00188% @ 9.7W |
| 0.00194% @ 12.0W | 0.00197% @ 14.7W | 0.00197% @ 18.2W | 0.00192% @ 22.4W |
| 0.00184% @ 27.5W | 0.00173% @ 33.9W | 0.00161% @ 41.8W | 0.00153% @ 51.4W |
| 0.00152% @ 63.3W | 0.00163% @ 77.9W | 0.00198% @ 95.9W | 0.00289% @ 120.0W |
(Front Channel)
| 0.00161% @ 1.0W | 0.00194% @ 1.2W | 0.00199% @ 1.5W | 0.00187% @ 1.9W |
| 0.00169% @ 2.3W | 0.00153% @ 2.8W | 0.00140% @ 3.5W | 0.00133% @ 4.3W |
| 0.00131% @ 5.3W | 0.00133% @ 6.5W | 0.00138% @ 8.0W | 0.00146% @ 9.9W |
| 0.00155% @ 12.2W | 0.00162% @ 15.0W | 0.00166% @ 18.4W | 0.00166% @ 22.7W |
| 0.00161% @ 27.9W | 0.00154% @ 34.4W | 0.00147% @ 42.4W | 0.00143% @ 52.2W |
| 0.00150% @ 64.3W | 0.00178% @ 79.1W | 0.00258% @ 97.5W | 0.00455% @ 120.0W |
(Surround Channel)

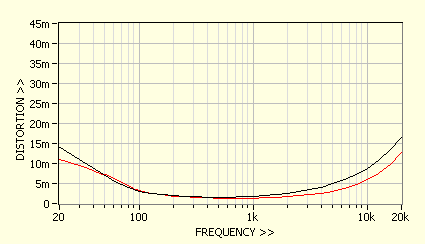

Distortion vs Frequency at 10W into 8ohm PASS
THD achieved into 8.0ohm (2nd-4th harmonics) re. 11.7W =
| 0.0145% @ 20Hz | 0.0138% @ 25Hz | 0.01270% @ 32Hz | 0.0090% @ 40Hz |
| 0.0055% @ 50Hz | 0.00424% @ 63Hz | 0.00357% @ 80Hz | 0.00312% @ 100Hz |
| 0.00256% @ 125Hz | 0.00218% @ 160Hz | 0.00191% @ 200Hz | 0.00174% @ 250Hz |
| 0.00164% @ 315Hz | 0.00159% @ 400Hz | 0.00158% @ 500Hz | 0.00162% @ 630Hz |
| 0.00170% @ 800Hz | 0.00182% @ 1000Hz | 0.00199% @ 1250Hz | 0.00223% @ 1600Hz |
| 0.00253% @ 2000Hz | 0.00293% @ 2500Hz | 0.00343% @ 3150Hz | 0.00407% @ 4000Hz |
| 0.00488% @ 5000Hz | 0.00591% @ 6300Hz | 0.00720% @ 8000Hz | 0.00883% @ 10000Hz |
| 0.01086% @ 12500Hz | 0.01338% @ 16000Hz | 0.01650% @ 20000Hz |
(Front Channel)
| 0.01187% @ 20Hz | 0.01036% @ 25Hz | 0.0091% @ 32Hz | 0.00562% @ 40Hz |
| 0.0052% @ 50Hz | 0.0045% @ 63Hz | 0.00487% @ 80Hz | 0.00319% @ 100Hz |
| 0.00258% @ 125Hz | 0.00215% @ 160Hz | 0.00185% @ 200Hz | 0.00164% @ 250Hz |
| 0.00149% @ 315Hz | 0.00139% @ 400Hz | 0.00133% @ 500Hz | 0.00131% @ 630Hz |
| 0.00132% @ 800Hz | 0.00136% @ 1000Hz | 0.00144% @ 1250Hz | 0.00155% @ 1600Hz |
| 0.00172% @ 2000Hz | 0.00193% @ 2500Hz | 0.00222% @ 3150Hz | 0.00261% @ 4000Hz |
| 0.00311% @ 5000Hz | 0.00379% @ 6300Hz | 0.00468% @ 8000Hz | 0.00588% @ 10000Hz |
| 0.00751% @ 12500Hz | 0.00972% @ 16000Hz | 0.01276% @ 20000Hz |
(Surround Channel)

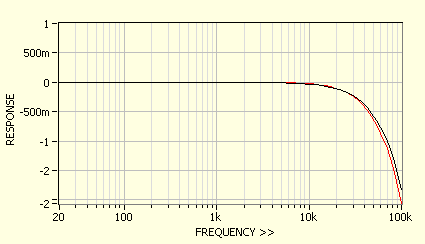

Frequency Response from 20Hz to 100kHz at 10W into 8ohm PASS
Response achieved (re. 12.0W into 8.0ohm) =
| -0.01dB @ 20Hz | -0.01dB @ 21Hz | -0.01dB @ 23Hz | -0.01dB @ 26Hz |
| -0.00dB @ 30Hz | -0.00dB @ 33Hz | -0.00dB @ 37Hz | -0.00dB @ 42Hz |
| -0.00dB @ 47Hz | -0.00dB @ 53Hz | 0.00dB @ 59Hz | 0.00dB @ 66Hz |
| 0.00dB @ 74Hz | 0.00dB @ 83Hz | 0.00dB @ 94Hz | 0.00dB @ 105Hz |
| -0.00dB @ 118Hz | -0.00dB @ 132Hz | -0.00dB @ 149Hz | -0.00dB @ 167Hz |
| -0.00dB @ 187Hz | 0.00dB @ 210Hz | 0.00dB @ 236Hz | 0.00dB @ 265Hz |
| 0.00dB @ 297Hz | 0.00dB @ 334Hz | 0.00dB @ 375Hz | 0.00dB @ 420Hz |
| 0.00dB @ 472Hz | 0.00dB @ 530Hz | 0.00dB @ 590Hz | 0.00dB @ 670Hz |
| 0.00dB @ 750Hz | 0.00dB @ 840Hz | 0.00dB @ 940Hz | 0.00dB @ 1060Hz |
| -0.00dB @ 1190Hz | 0.00dB @ 1330Hz | -0.00dB @ 1500Hz | -0.00dB @ 1680Hz |
| -0.00dB @ 1890Hz | -0.00dB @ 2120Hz | -0.00dB @ 2380Hz | -0.00dB @ 2670Hz |
| -0.00dB @ 3000Hz | -0.00dB @ 3360Hz | -0.01dB @ 3780Hz | -0.01dB @ 4240Hz |
| -0.01dB @ 4760Hz | -0.01dB @ 5300Hz | -0.01dB @ 6000Hz | -0.02dB @ 6700Hz |
| -0.02dB @ 7600Hz | -0.03dB @ 8500Hz | -0.03dB @ 9500Hz | -0.04dB @ 10700Hz |
| -0.05dB @ 12000Hz | -0.06dB @ 13500Hz | -0.07dB @ 15100Hz | -0.08dB @ 17000Hz |
| -0.10dB @ 19000Hz | -0.13dB @ 21400Hz | -0.15dB @ 24000Hz | -0.19dB @ 26900Hz |
| -0.23dB @ 30200Hz | -0.29dB @ 33900Hz | -0.35dB @ 38100Hz | -0.43dB @ 42700Hz |
| -0.53dB @ 47900Hz | -0.64dB @ 54000Hz | -0.77dB @ 60000Hz | -0.95dB @ 68000Hz |
| -1.14dB @ 76000Hz | -1.35dB @ 85000Hz | -1.69dB @ 96000Hz | -1.82dB @ 100000Hz |
(Front Channel)
| -0.01dB @ 20Hz | -0.01dB @ 21Hz | -0.01dB @ 23Hz | -0.01dB @ 26Hz |
| -0.01dB @ 30Hz | -0.01dB @ 33Hz | -0.00dB @ 37Hz | -0.00dB @ 42Hz |
| -0.00dB @ 47Hz | -0.00dB @ 53Hz | -0.00dB @ 59Hz | -0.00dB @ 66Hz |
| 0.00dB @ 74Hz | 0.00dB @ 83Hz | 0.00dB @ 94Hz | -0.00dB @ 105Hz |
| -0.00dB @ 118Hz | -0.00dB @ 132Hz | -0.00dB @ 149Hz | -0.00dB @ 167Hz |
| -0.00dB @ 187Hz | -0.00dB @ 210Hz | -0.00dB @ 236Hz | 0.00dB @ 265Hz |
| 0.00dB @ 297Hz | 0.00dB @ 334Hz | 0.00dB @ 375Hz | 0.00dB @ 420Hz |
| 0.00dB @ 472Hz | -0.00dB @ 530Hz | 0.00dB @ 590Hz | 0.00dB @ 670Hz |
| 0.00dB @ 750Hz | 0.00dB @ 840Hz | 0.00dB @ 940Hz | 0.00dB @ 1060Hz |
| 0.00dB @ 1190Hz | 0.00dB @ 1330Hz | 0.00dB @ 1500Hz | 0.00dB @ 1680Hz |
| 0.00dB @ 1890Hz | 0.00dB @ 2120Hz | 0.00dB @ 2380Hz | 0.00dB @ 2670Hz |
| 0.00dB @ 3000Hz | -0.00dB @ 3360Hz | -0.00dB @ 3780Hz | -0.00dB @ 4240Hz |
| -0.00dB @ 4760Hz | -0.01dB @ 5300Hz | -0.01dB @ 6000Hz | -0.01dB @ 6700Hz |
| -0.01dB @ 7600Hz | -0.02dB @ 8500Hz | -0.02dB @ 9500Hz | -0.03dB @ 10700Hz |
| -0.04dB @ 12000Hz | -0.05dB @ 13500Hz | -0.06dB @ 15100Hz | -0.08dB @ 17000Hz |
| -0.10dB @ 19000Hz | -0.13dB @ 21400Hz | -0.16dB @ 24000Hz | -0.20dB @ 26900Hz |
| -0.25dB @ 30200Hz | -0.31dB @ 33900Hz | -0.38dB @ 38100Hz | -0.47dB @ 42700Hz |
| -0.58dB @ 47900Hz | -0.72dB @ 54000Hz | -0.86dB @ 60000Hz | -1.07dB @ 68000Hz |
| -1.29dB @ 76000Hz | -1.54dB @ 85000Hz | -1.92dB @ 96000Hz | -2.06dB @ 100000Hz |
(Surround Channel)

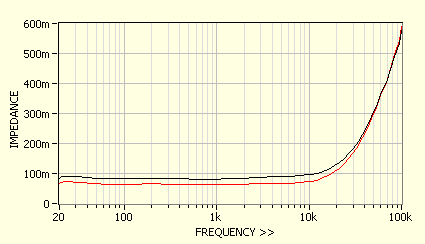

Output Impedance from 20Hz to 100kHz at 10W into 8ohm PASS
Output Impedance (re. 12.0W into 4.0ohm) =
| 0.085ohm @ 20Hz | 0.089ohm @ 21Hz | 0.091ohm @ 23Hz | 0.091ohm @ 26Hz |
| 0.090ohm @ 30Hz | 0.089ohm @ 33Hz | 0.087ohm @ 37Hz | 0.086ohm @ 42Hz |
| 0.085ohm @ 47Hz | 0.084ohm @ 53Hz | 0.083ohm @ 59Hz | 0.082ohm @ 66Hz |
| 0.082ohm @ 74Hz | 0.082ohm @ 83Hz | 0.082ohm @ 94Hz | 0.082ohm @ 105Hz |
| 0.083ohm @ 118Hz | 0.083ohm @ 132Hz | 0.083ohm @ 149Hz | 0.083ohm @ 167Hz |
| 0.084ohm @ 187Hz | 0.084ohm @ 210Hz | 0.084ohm @ 236Hz | 0.083ohm @ 265Hz |
| 0.083ohm @ 297Hz | 0.083ohm @ 334Hz | 0.083ohm @ 375Hz | 0.082ohm @ 420Hz |
| 0.082ohm @ 472Hz | 0.081ohm @ 530Hz | 0.081ohm @ 590Hz | 0.081ohm @ 670Hz |
| 0.081ohm @ 750Hz | 0.081ohm @ 840Hz | 0.081ohm @ 940Hz | 0.081ohm @ 1060Hz |
| 0.082ohm @ 1190Hz | 0.082ohm @ 1330Hz | 0.083ohm @ 1500Hz | 0.083ohm @ 1680Hz |
| 0.084ohm @ 1890Hz | 0.085ohm @ 2120Hz | 0.086ohm @ 2380Hz | 0.087ohm @ 2670Hz |
| 0.087ohm @ 3000Hz | 0.088ohm @ 3360Hz | 0.089ohm @ 3780Hz | 0.089ohm @ 4240Hz |
| 0.090ohm @ 4760Hz | 0.090ohm @ 5300Hz | 0.091ohm @ 6000Hz | 0.091ohm @ 6700Hz |
| 0.092ohm @ 7600Hz | 0.094ohm @ 8500Hz | 0.095ohm @ 9500Hz | 0.098ohm @ 10700Hz |
| 0.101ohm @ 12000Hz | 0.105ohm @ 13500Hz | 0.110ohm @ 15100Hz | 0.117ohm @ 17000Hz |
| 0.126ohm @ 19000Hz | 0.137ohm @ 21400Hz | 0.150ohm @ 24000Hz | 0.166ohm @ 26900Hz |
| 0.184ohm @ 30200Hz | 0.206ohm @ 33900Hz | 0.230ohm @ 38100Hz | 0.258ohm @ 42700Hz |
| 0.290ohm @ 47900Hz | 0.325ohm @ 54000Hz | 0.362ohm @ 60000Hz | 0.403ohm @ 68000Hz |
| 0.445ohm @ 76000Hz | 0.489ohm @ 85000Hz | 0.533ohm @ 96000Hz | 0.576ohm @ 100000Hz |
(Front Channel)
| 0.066ohm @ 20Hz | 0.070ohm @ 21Hz | 0.072ohm @ 23Hz | 0.072ohm @ 26Hz |
| 0.072ohm @ 30Hz | 0.070ohm @ 33Hz | 0.069ohm @ 37Hz | 0.068ohm @ 42Hz |
| 0.066ohm @ 47Hz | 0.065ohm @ 53Hz | 0.065ohm @ 59Hz | 0.064ohm @ 66Hz |
| 0.064ohm @ 74Hz | 0.064ohm @ 83Hz | 0.064ohm @ 94Hz | 0.064ohm @ 105Hz |
| 0.064ohm @ 118Hz | 0.065ohm @ 132Hz | 0.065ohm @ 149Hz | 0.065ohm @ 167Hz |
| 0.065ohm @ 187Hz | 0.065ohm @ 210Hz | 0.065ohm @ 236Hz | 0.065ohm @ 265Hz |
| 0.065ohm @ 297Hz | 0.064ohm @ 334Hz | 0.064ohm @ 375Hz | 0.064ohm @ 420Hz |
| 0.063ohm @ 472Hz | 0.063ohm @ 530Hz | 0.063ohm @ 590Hz | 0.063ohm @ 670Hz |
| 0.062ohm @ 750Hz | 0.062ohm @ 840Hz | 0.062ohm @ 940Hz | 0.062ohm @ 1060Hz |
| 0.063ohm @ 1190Hz | 0.063ohm @ 1330Hz | 0.063ohm @ 1500Hz | 0.064ohm @ 1680Hz |
| 0.064ohm @ 1890Hz | 0.065ohm @ 2120Hz | 0.065ohm @ 2380Hz | 0.065ohm @ 2670Hz |
| 0.066ohm @ 3000Hz | 0.066ohm @ 3360Hz | 0.066ohm @ 3780Hz | 0.067ohm @ 4240Hz |
| 0.067ohm @ 4760Hz | 0.067ohm @ 5300Hz | 0.067ohm @ 6000Hz | 0.068ohm @ 6700Hz |
| 0.069ohm @ 7600Hz | 0.070ohm @ 8500Hz | 0.072ohm @ 9500Hz | 0.074ohm @ 10700Hz |
| 0.078ohm @ 12000Hz | 0.083ohm @ 13500Hz | 0.089ohm @ 15100Hz | 0.096ohm @ 17000Hz |
| 0.106ohm @ 19000Hz | 0.118ohm @ 21400Hz | 0.132ohm @ 24000Hz | 0.149ohm @ 26900Hz |
| 0.169ohm @ 30200Hz | 0.193ohm @ 33900Hz | 0.219ohm @ 38100Hz | 0.250ohm @ 42700Hz |
| 0.283ohm @ 47900Hz | 0.320ohm @ 54000Hz | 0.361ohm @ 60000Hz | 0.404ohm @ 68000Hz |
| 0.449ohm @ 76000Hz | 0.496ohm @ 85000Hz | 0.543ohm @ 96000Hz | 0.590ohm @ 100000Hz |
(Surround Channel)
Interchannel crosstalk at 1kHz PASS
Channel Crosstalk (re. 12.0V into 8.0ohm, Front Channel on Surround Channel) =
Interchannel crosstalk at 20kHz PASS
Channel Crosstalk (re. 12.0V into 8.0ohm, Front Channel on Surround Channel) =
Adjust volume to 0dBW PASS
Output Level achieved (re. 1000Hz into 8.0ohm) =
1.0W (Peak = 9.03dBV or 2828.6mVrms) (Front Channel)
1.0W (Peak = 9.11dBV or 2853.7mVrms) (Surround Channel)
(dBV level now set as 0dB reference)
Channel Balance @ 0dBW (AV/Int) PASS
Front/Surround Channel Balance (re. 1.0W into 8.0ohm) =

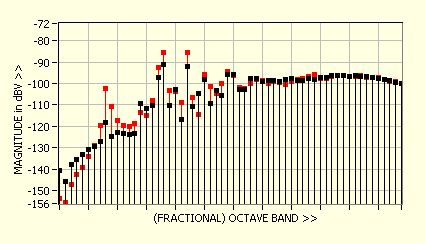

A-wtd Signal-to-Noise re. 0dBW (AV/Int) PASS
Signal-to-Noise Ratio (A-weighted, 6th-Octave mode) into 8.0ohm =
90.5dB (Front Channel)
88.3dB (Surround Channel)
Analysis:
| -140.7dBV @ 21Hz | -145.6dBV @ 23Hz | -137.8dBV @ 26Hz | -135.3dBV @ 30Hz |
| -133.1dBV @ 33Hz | -131.0dBV @ 37Hz | -129.4dBV @ 42Hz | -127.0dBV @ 47Hz |
| -118.0dBV @ 53Hz | -124.6dBV @ 59Hz | -122.8dBV @ 66Hz | -123.2dBV @ 74Hz |
| -123.8dBV @ 83Hz | -123.4dBV @ 94Hz | -109.4dBV @ 105Hz | -111.8dBV @ 118Hz |
| -110.3dBV @ 132Hz | -97.4dBV @ 149Hz | -91.2dBV @ 167Hz | -110.2dBV @ 187Hz |
| -103.0dBV @ 210Hz | -117.0dBV @ 236Hz | -92.2dBV @ 265Hz | -110.6dBV @ 297Hz |
| -104.6dBV @ 334Hz | -98.0dBV @ 375Hz | -109.3dBV @ 420Hz | -103.1dBV @ 472Hz |
| -105.6dBV @ 530Hz | -95.9dBV @ 590Hz | -95.8dBV @ 670Hz | -102.9dBV @ 750Hz |
| -102.8dBV @ 840Hz | -97.8dBV @ 940Hz | -97.8dBV @ 1060Hz | -99.2dBV @ 1190Hz |
| -98.7dBV @ 1330Hz | -98.7dBV @ 1500Hz | -98.9dBV @ 1680Hz | -98.3dBV @ 1890Hz |
| -97.9dBV @ 2120Hz | -98.5dBV @ 2380Hz | -98.5dBV @ 2670Hz | -97.9dBV @ 3000Hz |
| -98.1dBV @ 3360Hz | -97.4dBV @ 3780Hz | -97.2dBV @ 4240Hz | -96.4dBV @ 4760Hz |
| -96.5dBV @ 5300Hz | -96.2dBV @ 6000Hz | -96.7dBV @ 6700Hz | -96.4dBV @ 7600Hz |
| -96.6dBV @ 8500Hz | -96.7dBV @ 9500Hz | -97.2dBV @ 10700Hz | -97.6dBV @ 12000Hz |
| -98.2dBV @ 13500Hz | -98.5dBV @ 15100Hz | -99.4dBV @ 17000Hz | -99.8dBV @ 19000Hz |
(Front Channel)
| -153.8dBV @ 21Hz | -155.5dBV @ 23Hz | -147.3dBV @ 26Hz | -142.3dBV @ 30Hz |
| -139.0dBV @ 33Hz | -134.2dBV @ 37Hz | -129.0dBV @ 42Hz | -119.4dBV @ 47Hz |
| -102.6dBV @ 53Hz | -110.6dBV @ 59Hz | -117.5dBV @ 66Hz | -119.6dBV @ 74Hz |
| -120.0dBV @ 83Hz | -118.7dBV @ 94Hz | -113.6dBV @ 105Hz | -114.7dBV @ 118Hz |
| -108.0dBV @ 132Hz | -92.3dBV @ 149Hz | -85.7dBV @ 167Hz | -103.3dBV @ 187Hz |
| -103.6dBV @ 210Hz | -108.9dBV @ 236Hz | -85.7dBV @ 265Hz | -106.4dBV @ 297Hz |
| -114.6dBV @ 334Hz | -95.8dBV @ 375Hz | -101.5dBV @ 420Hz | -104.8dBV @ 472Hz |
| -100.0dBV @ 530Hz | -94.4dBV @ 590Hz | -96.1dBV @ 670Hz | -101.7dBV @ 750Hz |
| -102.4dBV @ 840Hz | -100.0dBV @ 940Hz | -97.9dBV @ 1060Hz | -98.4dBV @ 1190Hz |
| -99.8dBV @ 1330Hz | -98.9dBV @ 1500Hz | -99.5dBV @ 1680Hz | -100.5dBV @ 1890Hz |
| -98.9dBV @ 2120Hz | -98.2dBV @ 2380Hz | -97.6dBV @ 2670Hz | -96.6dBV @ 3000Hz |
| -95.7dBV @ 3360Hz | -97.5dBV @ 3780Hz | -97.8dBV @ 4240Hz | -96.7dBV @ 4760Hz |
| -96.2dBV @ 5300Hz | -96.1dBV @ 6000Hz | -96.6dBV @ 6700Hz | -96.5dBV @ 7600Hz |
| -96.5dBV @ 8500Hz | -97.2dBV @ 9500Hz | -97.0dBV @ 10700Hz | -97.4dBV @ 12000Hz |
| -98.2dBV @ 13500Hz | -99.1dBV @ 15100Hz | -99.2dBV @ 17000Hz | -99.9dBV @ 19000Hz |
(Surround Channel)

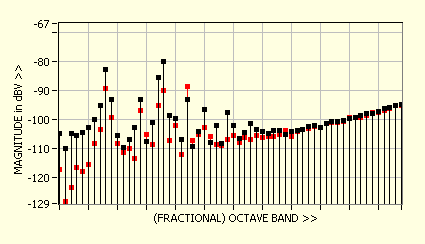

Unweighted Hum and Noise PASS
Residual Noise (unweighted, 6th-Octave mode) into 8.0ohm =
-76.27dBV (Front Channel)
-81.40dBV (Surround Channel)
Analysis:
| -105.0dBV @ 21Hz | -109.9dBV @ 23Hz | -104.9dBV @ 26Hz | -105.7dBV @ 30Hz |
| -104.7dBV @ 33Hz | -103.0dBV @ 37Hz | -100.0dBV @ 42Hz | -95.2dBV @ 47Hz |
| -82.8dBV @ 53Hz | -93.3dBV @ 59Hz | -105.7dBV @ 66Hz | -109.9dBV @ 74Hz |
| -107.1dBV @ 83Hz | -103.0dBV @ 94Hz | -93.1dBV @ 105Hz | -107.6dBV @ 118Hz |
| -101.2dBV @ 132Hz | -85.7dBV @ 149Hz | -80.2dBV @ 167Hz | -98.7dBV @ 187Hz |
| -99.7dBV @ 210Hz | -107.0dBV @ 236Hz | -93.0dBV @ 265Hz | -109.4dBV @ 297Hz |
| -104.1dBV @ 334Hz | -96.5dBV @ 375Hz | -108.1dBV @ 420Hz | -102.1dBV @ 472Hz |
| -108.2dBV @ 530Hz | -97.7dBV @ 590Hz | -102.2dBV @ 670Hz | -106.7dBV @ 750Hz |
| -104.5dBV @ 840Hz | -101.3dBV @ 940Hz | -103.4dBV @ 1060Hz | -104.3dBV @ 1190Hz |
| -105.0dBV @ 1330Hz | -103.8dBV @ 1500Hz | -103.9dBV @ 1680Hz | -105.3dBV @ 1890Hz |
| -104.3dBV @ 2120Hz | -103.9dBV @ 2380Hz | -103.6dBV @ 2670Hz | -102.4dBV @ 3000Hz |
| -102.3dBV @ 3360Hz | -102.7dBV @ 3780Hz | -101.5dBV @ 4240Hz | -100.9dBV @ 4760Hz |
| -100.7dBV @ 5300Hz | -100.3dBV @ 6000Hz | -99.6dBV @ 6700Hz | -99.3dBV @ 7600Hz |
| -98.8dBV @ 8500Hz | -98.0dBV @ 9500Hz | -98.1dBV @ 10700Hz | -97.3dBV @ 12000Hz |
| -96.2dBV @ 13500Hz | -95.8dBV @ 15100Hz | -95.2dBV @ 17000Hz | -94.8dBV @ 19000Hz |
(Front Channel)
| -117.2dBV @ 21Hz | -128.1dBV @ 23Hz | -123.5dBV @ 26Hz | -116.7dBV @ 30Hz |
| -118.1dBV @ 33Hz | -115.6dBV @ 37Hz | -108.3dBV @ 42Hz | -103.3dBV @ 47Hz |
| -89.3dBV @ 53Hz | -99.4dBV @ 59Hz | -108.2dBV @ 66Hz | -111.5dBV @ 74Hz |
| -109.9dBV @ 83Hz | -113.4dBV @ 94Hz | -96.8dBV @ 105Hz | -105.4dBV @ 118Hz |
| -108.8dBV @ 132Hz | -95.3dBV @ 149Hz | -90.1dBV @ 167Hz | -107.4dBV @ 187Hz |
| -102.3dBV @ 210Hz | -112.3dBV @ 236Hz | -88.5dBV @ 265Hz | -107.3dBV @ 297Hz |
| -105.3dBV @ 334Hz | -102.9dBV @ 375Hz | -106.1dBV @ 420Hz | -108.6dBV @ 472Hz |
| -109.0dBV @ 530Hz | -106.9dBV @ 590Hz | -105.6dBV @ 670Hz | -108.0dBV @ 750Hz |
| -106.2dBV @ 840Hz | -107.0dBV @ 940Hz | -105.5dBV @ 1060Hz | -106.2dBV @ 1190Hz |
| -106.0dBV @ 1330Hz | -105.8dBV @ 1500Hz | -105.3dBV @ 1680Hz | -103.8dBV @ 1890Hz |
| -105.9dBV @ 2120Hz | -104.3dBV @ 2380Hz | -103.6dBV @ 2670Hz | -103.3dBV @ 3000Hz |
| -102.5dBV @ 3360Hz | -102.9dBV @ 3780Hz | -101.4dBV @ 4240Hz | -101.1dBV @ 4760Hz |
| -100.9dBV @ 5300Hz | -100.8dBV @ 6000Hz | -99.5dBV @ 6700Hz | -99.5dBV @ 7600Hz |
| -99.4dBV @ 8500Hz | -98.7dBV @ 9500Hz | -97.8dBV @ 10700Hz | -97.8dBV @ 12000Hz |
| -97.0dBV @ 13500Hz | -96.3dBV @ 15100Hz | -95.3dBV @ 17000Hz | -95.3dBV @ 19000Hz |
(Surround Channel)
DC Offset PASS
DC Offset (re. 8.00ohm) =
-2.6mV (Front Channel)
0.2mV (Surround Channel)
